Audi relying on ultra lightweight technology for Le Mans

Audi relying on ultra lightweight technology
for Le Mans

• Only seven weeks before the 24 Hours of Le Mans
• Company’s lightweight technology expertise is visible
• Audi R18 TDI with innovative detail design solutions

Ingolstadt, April 21, 2011 – Lightweight design expertise expressed visually: This
is the principle under which Audi enters the famous 24 Hours of Le Mans this year.
The three Audi R18 TDI cars, which join the grid for the French endurance classic
on June 11/12 and which make their first public appearance over the Easter
weekend at the Le Mans test day, perfectly embodies – also visually – Audi’s core
expertise in lightweight technology.

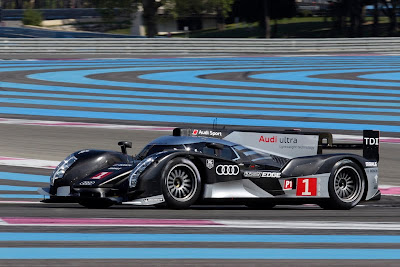

The livery of the three Audi Sport Team Joest Audi R18 TDI cars is dominated by
puristic carbon fiber. The car of last year’s Le Mans winners carrying start number
“1” even runs in the characteristic black of the extremely light and, at the same
time, high-strength material, which also plays an increasingly important role in the
development of new production cars.
“Carbon fiber is ideally suited for lightweight design and construction,” explains
Head of Audi Motorsport Dr. Wolfgang Ullrich. “We have deliberately made this
material and the ultra lightweight technology visual for Le Mans. Lightweight design
has occupied us for many years in motorsport. Everything that we have learnt over
the years and especially about lightweight design and construction during
development of the R18 TDI will also be available for our customers in the future –
either in the form of greater performance or in the shape of low fuel consumption
and lower emissions.”
The R18 TDI is a particularly authentic ambassador for the company’s lightweight
technology which will be bundled by the term ‘ultra’ in the future. “Lightweight
design is a very important factor at Le Mans because a light car is also always a more
efficient car,” says Dr. Wolfgang Ullrich. This year, it is of even greater significance
since the regulations stipulate smaller engines producing less power – for the Audi
R18 TDI this means over 540 hp (397 kW).
Although there is a minimum weight of 900 kilograms for LMP1 cars at Le Mans, the
target is to produce a car weighing significantly less than this limit in order to
optimize the weight distribution with the help of ballast and to lower the center of
gravity as much as possible.

“With the R18 TDI every component was optimized logically with regard to weight,”
stresses Martin Mühlmeier, Head of Technology at Audi Sport. “The same applied to
the chassis and the bodywork, the gearbox and the engine. We scoured the car for
every superfluous gram.”

The carbon monocoque produced in a single-piece, for which a highly complex
manufacturing process was developed and which is an impressive proof of the
company’s lightweight design expertise, is not only revolutionary for a Le Mans
sports car. The same applies for the bodywork which was lightened by 40 kilograms
between the first and second version. “Such a consequent lightweight design is a
high technical challenge,” says Christopher Reinke, Technical Project Leader at Audi
Sport.

The V6 TDI engine in the R18 TDI is about 25 percent lighter than the V10 TDI
engine in its predecessor. “On one hand through downsizing, but also to a certain
extent because we explored completely new directions and chose an unusual engine
concept,” explains Ulrich Baretzky, Head of Engine Development at Audi Sport.
The new six-speed gearbox, which has a high amount of carbon-fiber composite
material, and the complete LED headlights also help to save weight. It was also
possible to omit the electric cooling of the light-emitting diodes in the headlights
commonly found in production cars. Because the gearshift is no longer activated
pneumatically but rather electrically, the R18 TDI requires no more pneumatic
system. Optimized airflow through the cockpit should make air-conditioning
redundant.

“The Audi R18 TDI is equipped with many innovative solutions,” says Head of Audi
Motorsport Dr. Wolfgang Ullrich proudly. “It was built for regulations specifically
targeting future technologies – and with the background enabling these
technologies to be introduced into road going cars in the future. This is what makes
sport prototypes so interesting for Audi. That we will now see the first impact of
Audi ultra lightweight technology at Le Mans demonstrates just how motorsport

and production line development go hand in hand at Audi. I’m convinced that ultra
will be mentioned in one breath with terms like quattro or TDI in a few years.”

Audi Communications Motorsport
